DSC00487 - I'm rockin' it.
DSC00487
|

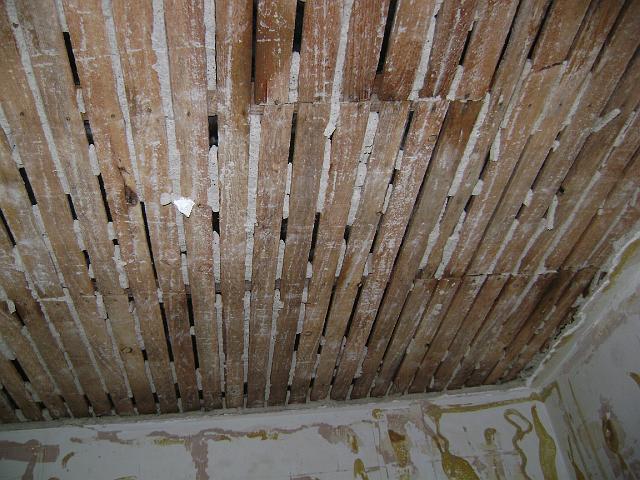

DSC00488 - Ceiling minus plaster.
DSC00488
|

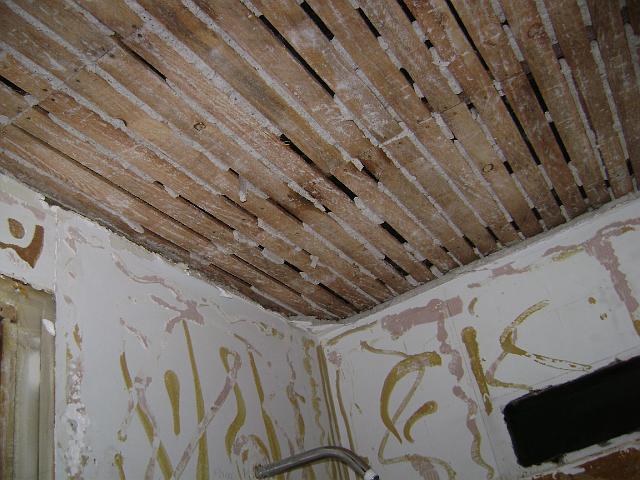

DSC00489 - Ceiling minus plaster.
DSC00489
|

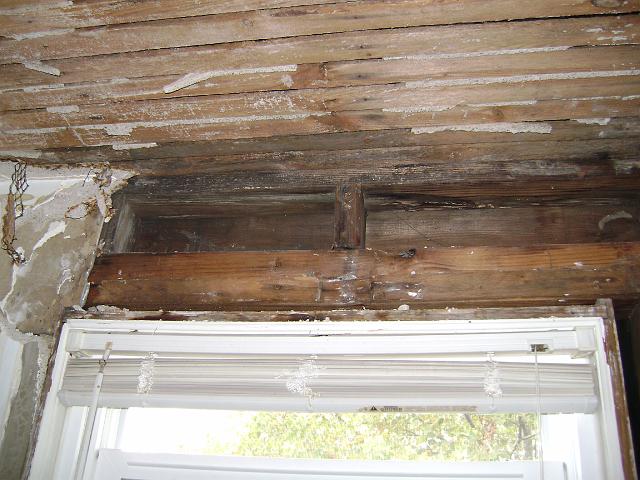

DSC00490 - Above the window. You can see a little bit of moisture exposure here.
DSC00490
|

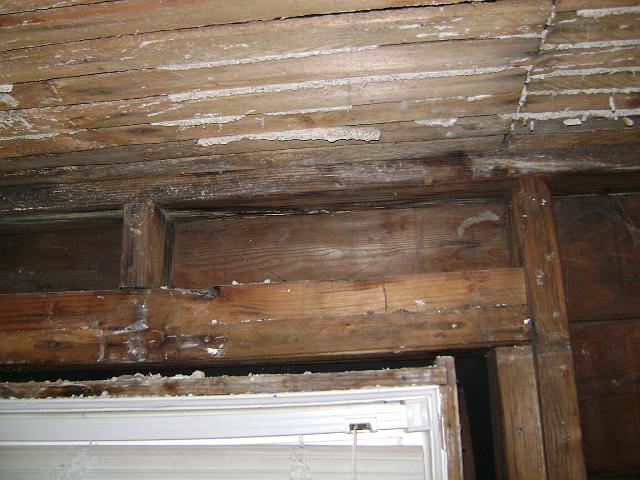

DSC00491 - Above the window.
DSC00491
|
DSC00492 - This is the sink/toilet wall. The giant cast vent goes straight through the roof.
DSC00492
|

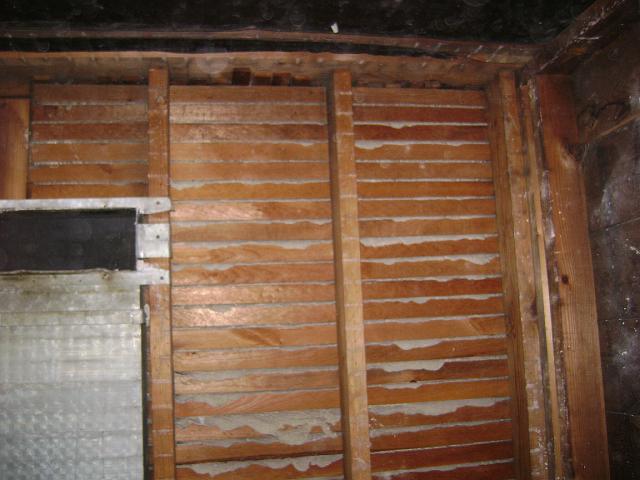

DSC00493 - This is the long wall of the tub after demo. You can see the return vent that was covered by the plastic tub wall.
DSC00493
|

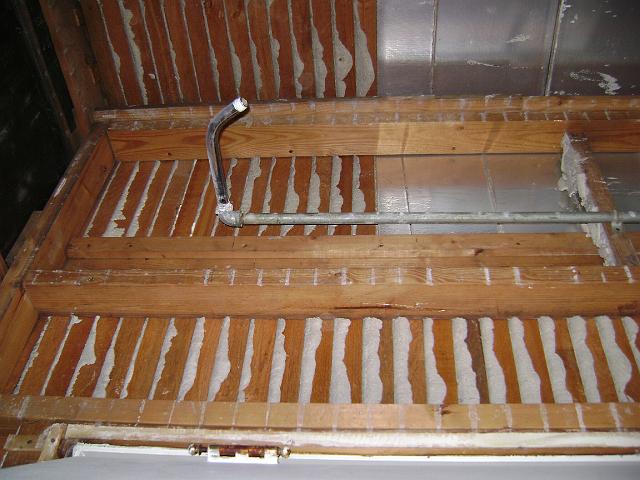

DSC00494 - Shower head wall.
DSC00494
|

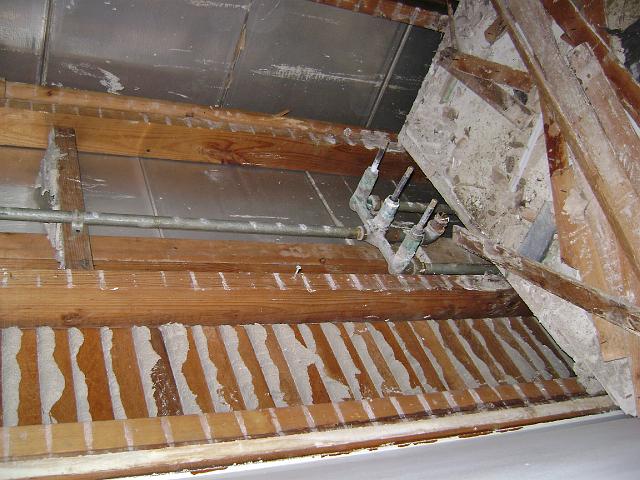

DSC00495 - Old tub faucet/plumbing.
DSC00495
|
DSC00496 - Old electrical
DSC00496
|

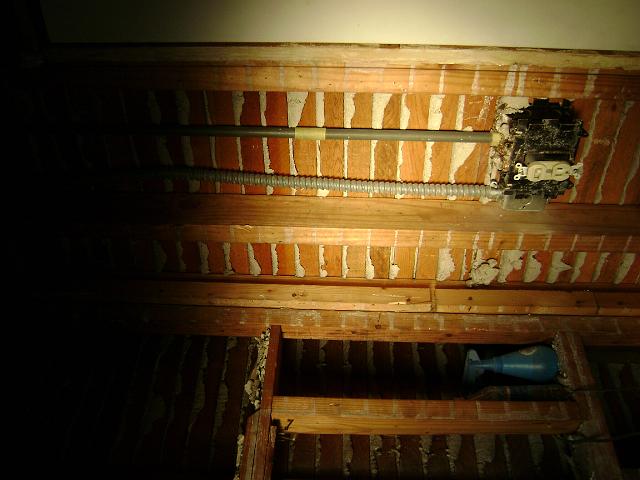

DSC00497 - Old electrical again.
DSC00497
|

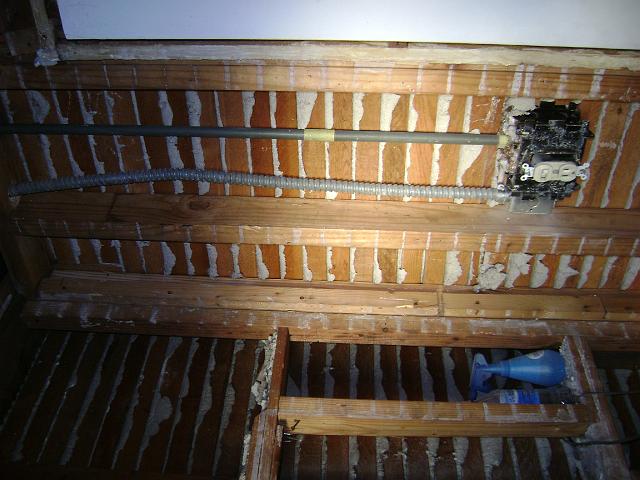

DSC00498 - Here we go. I turned the flash on this time.
DSC00498
|

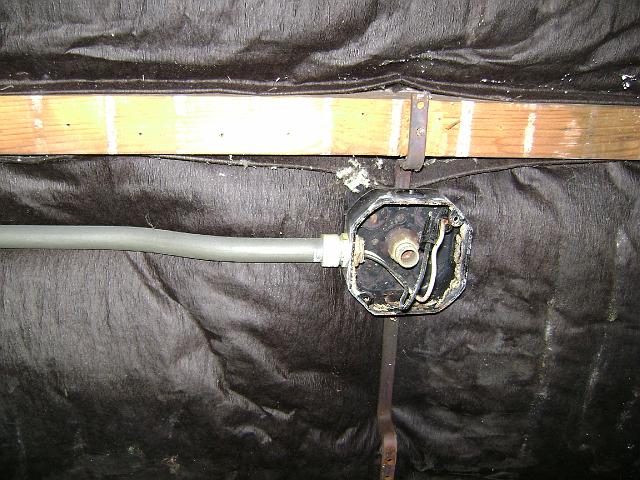

DSC00499 - This is the old ceiling box. The conduit went above the door to a fixture mounted in the landing outside the bathroom. The conduit from the switch box also went back to that octagon box outside the door.
DSC00499
|
DSC00500 - Existing insulation in the ceiling.
DSC00500
|

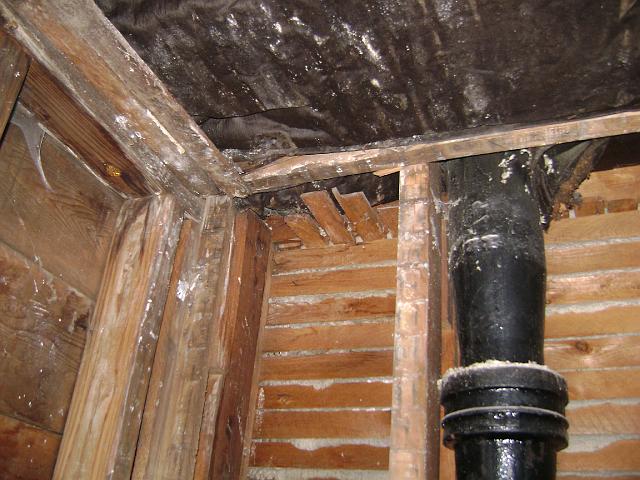

DSC00501 - This is the top of the wet vent. I later found out that this vent was leaking from a cracked seal on the roof. That leak is what caused the mold that pushed the job up a month.
DSC00501
|
DSC00512 - This is the electrical box on the other side of the box inside the bathroom. This box houses a 3-way switch for a hall light and the control switch for the whole-house fan. I pulled the old lath-mounted box and replaced it with this 3-gang box so I could add a timer to the whole-house fan.
DSC00512
|

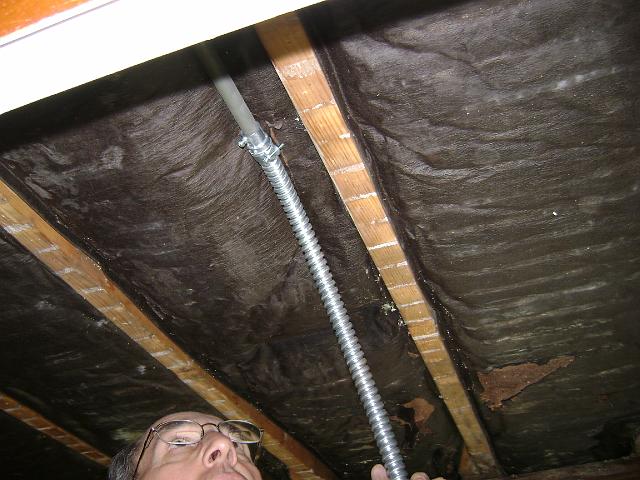

DSC00513 - This was our preliminary plan for the new fan/heater/light wiring. It failed.
DSC00513
|
DSC00514 - Another shot of the planned wiring scheme that we later trashed. You can see the new fan/light/heater mounted.
DSC00514
|
DSC00515 - I ended up using greenfield from the new fan/light/heater directly to the new box inside the bathroom instead of trying to snake four new wires through the box outside the bathroom in the hallway.
DSC00515
|

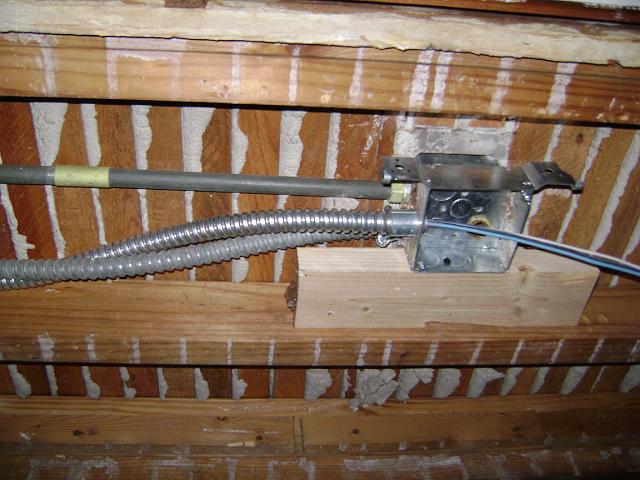

DSC00516 - This is the new 1900 box connected to the new greenfield piece that connects to the heater/fan/light. It is directly connected via a box connector to the 3 gang box on the other side. The new circuit we ran from the basement comes through the 3 gang box to this box.
DSC00516
|
DSC00517 - This is the path for the new greenfield that powers the heater/fan/light.
DSC00517
|

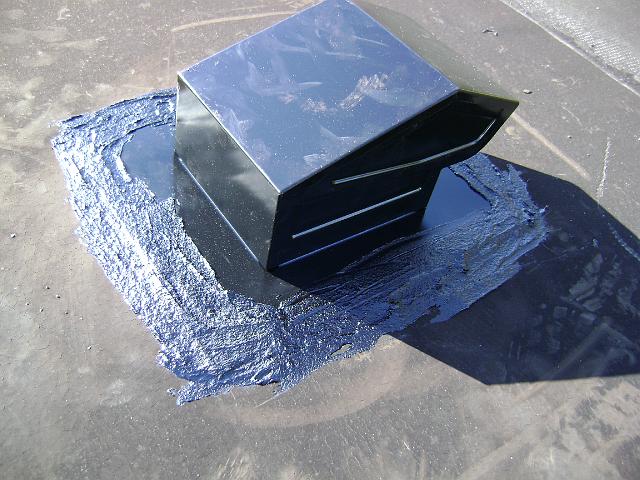

DSC00518 - This is the new roof vent after I mounted/sealed it.
DSC00518
|

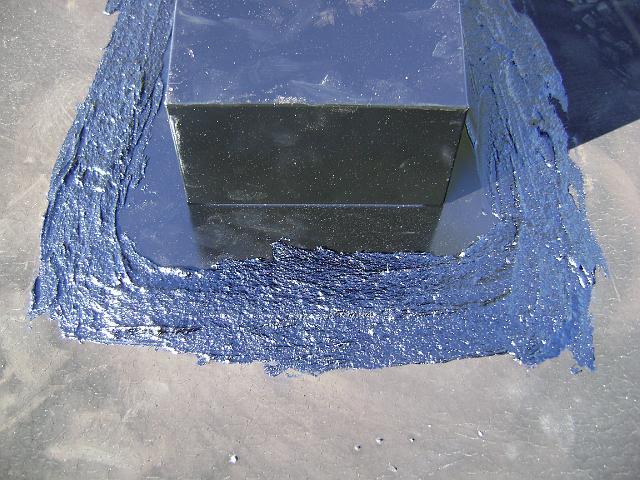

DSC00519 - This is the new roof vent after I mounted/sealed it.
DSC00519
|
DSC00520 - This is the new roof vent after I mounted/sealed it.
DSC00520
|

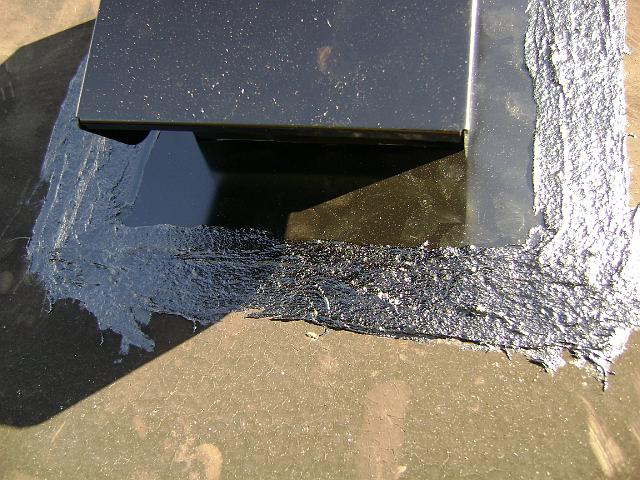

DSC00521 - This is the new roof vent after I mounted/sealed it.
DSC00521
|
